Tracked Utility Terrain Vehicle

Tracked Utility Terrain Vehicle
Tracked Utility Terrain Vehicle
Tracked Utility Terrain Vehicle
Tracked Utility Terrain Vehicle
Tracked Utility Terrain Vehicle
Tracked Utility Terrain Vehicle
Tracked Utility Terrain Vehicle
Tracked Utility Terrain Vehicle

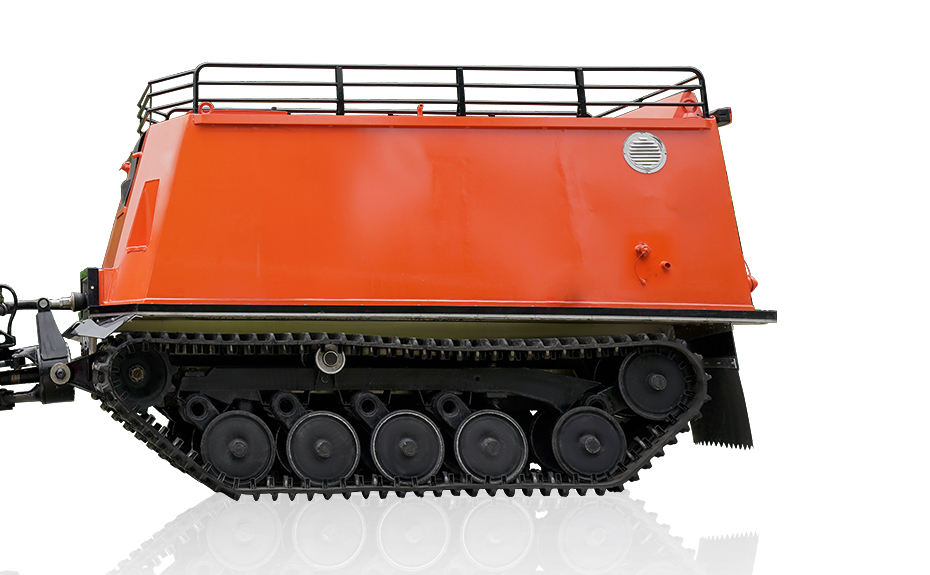

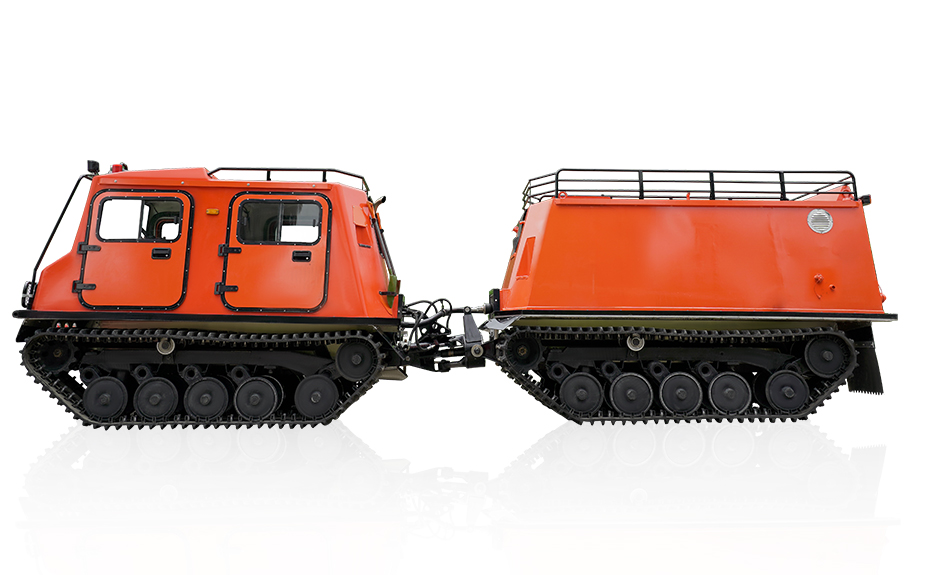

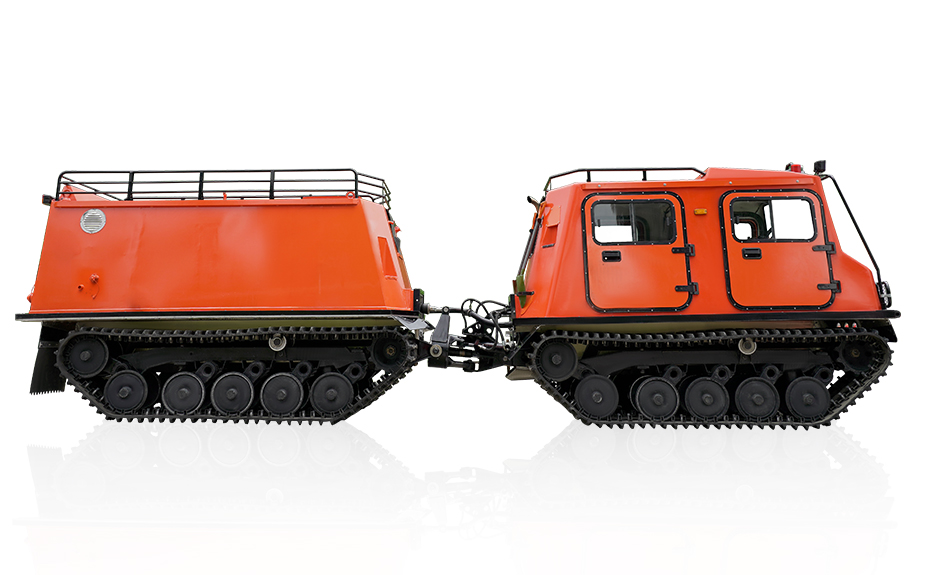

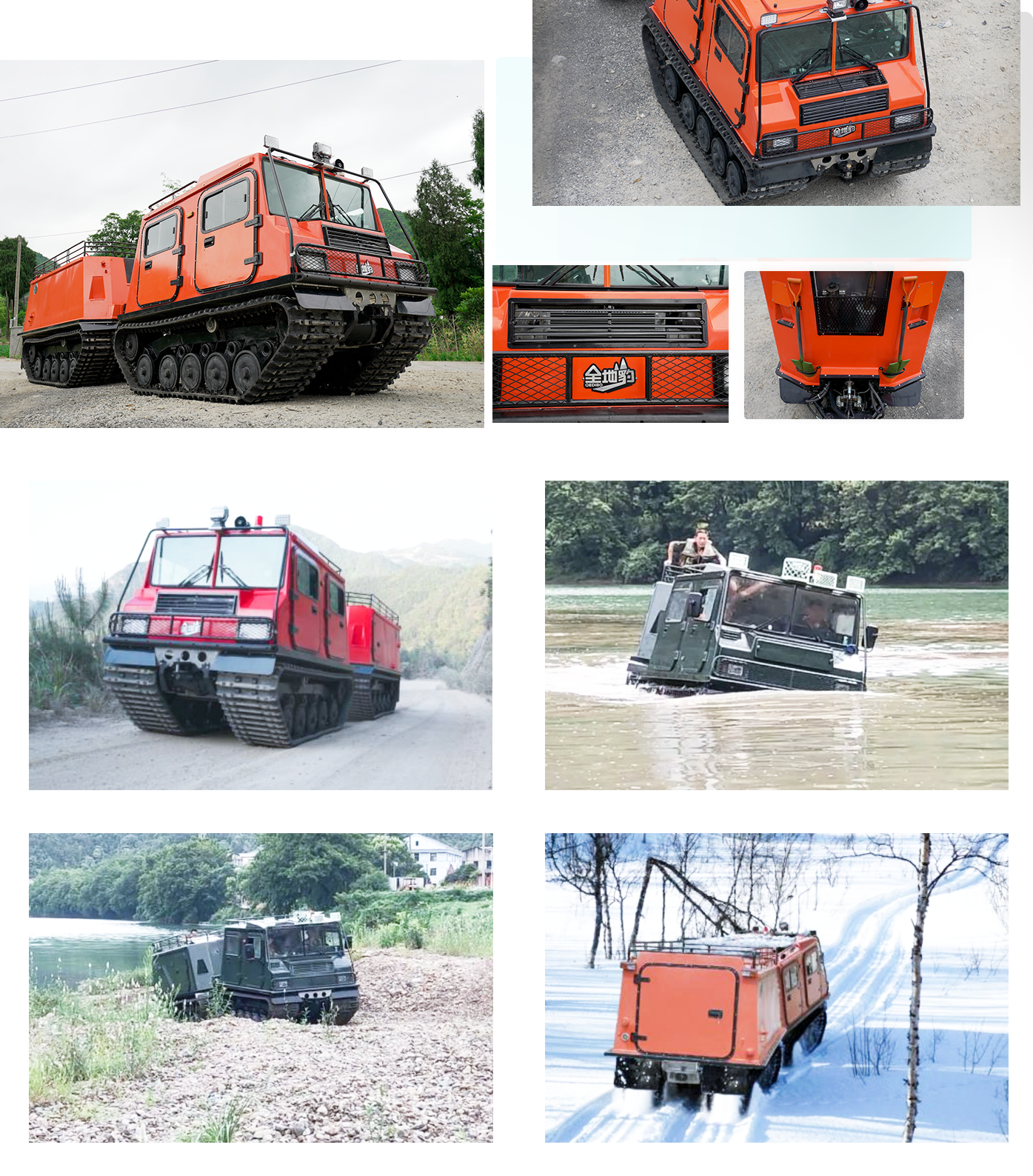

This utility terrain vehicle is a movable articulated double-carriage structure composed of two carriages which connected by a steering device.Each carriage consists of a chassis and a body.The chassis is composed of central beam, side drive and assembly mobile devices.Four independent assembly mobile devices are mutual substitution.The body is made of fire-resistant glass fiber reinforced plastic (GRP), with a double-layer structure, which is not only sturdy and durable, lighter than the steel compartment, but also has the function of preventing rollover.The vehicle can be worked in Extremely low temperature environment, since there are ventilation devices and heat exchangers which keep the temperature inside the car higher than the outside, what's more, it can be a demister. It's an amphibious vehicle. Also the rear carriage is available for customized, it can be modular production, thus our vehicle can be widely used in emergency rescue,off-road transport,obstacles clear,tourism etc.
color：
Contact now Ask a question
  • parameter
  • description
  • Size 7680*1900*2340mm
    Curb weight 5.7 tonnes
    Rated Load 4000 kg or 20 people 4000kg or 20 persons
    Top Speed on land:67km/h on water:9.8km/h
    Gradeabitity hard surface: 48° deep snow: 30°
    Engine power 170ps（125kw）
    Transmission torque 400Nm
    Chassis material Aviation alloy aluminum
    Maximum climbing angle 45°
    Maximum Roll angle 30°
    Maximum trench crossing capacity 1.5m
    Max Side Slope 36°
    Range, on roads 400km
    Ground Pressure 10.2kPa
    Minimum Operatina Temp -45*C
    Swept Volume 2.998L
    Torque 460Nm
    Gears Gearbox-fully automatic 5 forward. 1 reverse
    Steering System Articulated hydrostatic
    Turning Radius 6m
    Tracks Molded Rubber    Width 620mm
    Bodies DSM GRP
    Chassis Aviation alloy aluminum
    Alternator 14V 150Ah
    Batteries 1xl2V.105Ah

    Front Car Rear Car Total
    Curb Weight 3050kg 2550kg 5600kg
    Payload 1000kg 3000kg 4000kg
    Gross Weight 4050kg 5550kg 9600kg
    Passengers 5(6) 14 19(20)
    Cargo Space 3.5m³ 6.5m³ 10m³
