V-twin 8X8 ATV Waterwheel vehicles

V-twin 8X8 ATV Waterwheel vehicles
V-twin 8X8 ATV Waterwheel vehicles
V-twin 8X8 ATV Waterwheel vehicles
V-twin 8X8 ATV Waterwheel vehicles
V-twin 8X8 ATV Waterwheel vehicles
V-twin 8X8 ATV Waterwheel vehicles
V-twin 8X8 ATV Waterwheel vehicles
V-twin 8X8 ATV Waterwheel vehicles

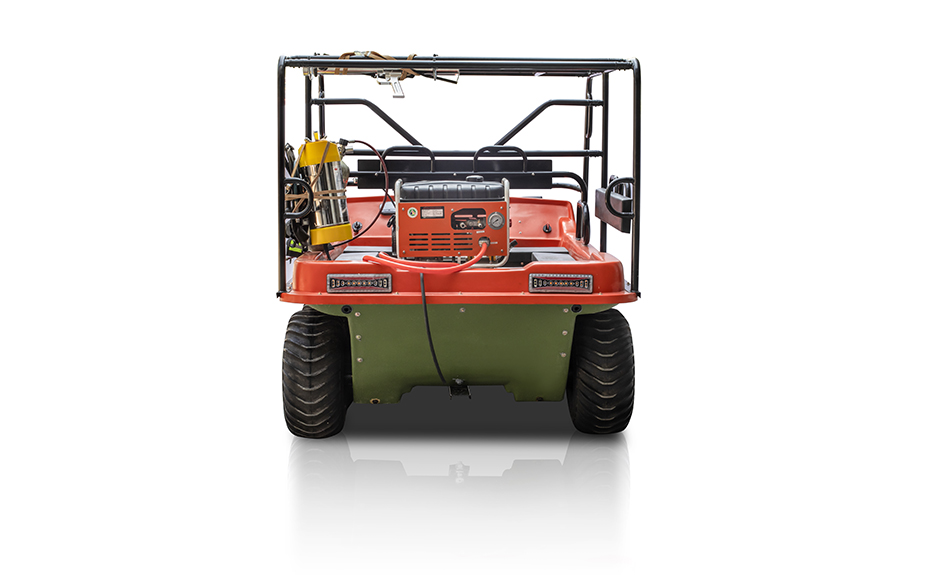

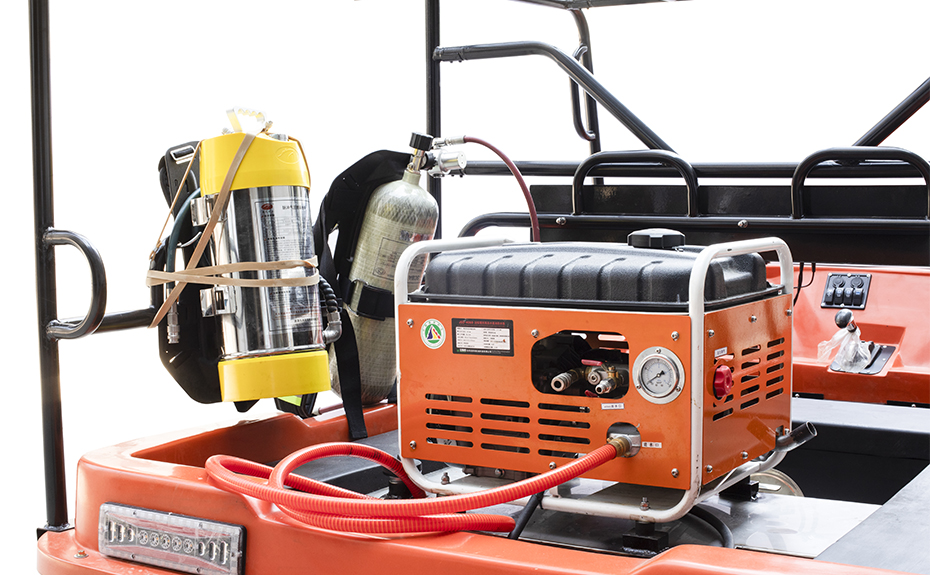

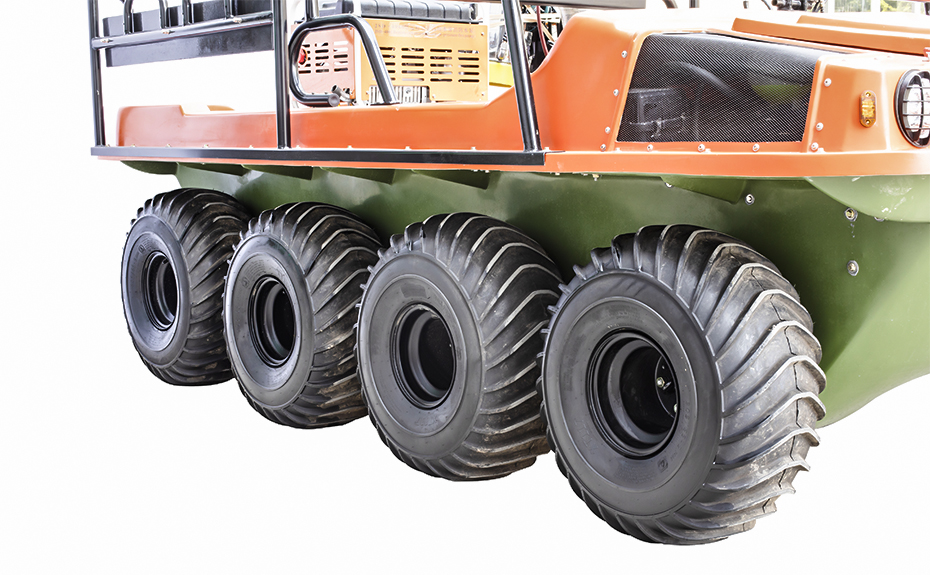

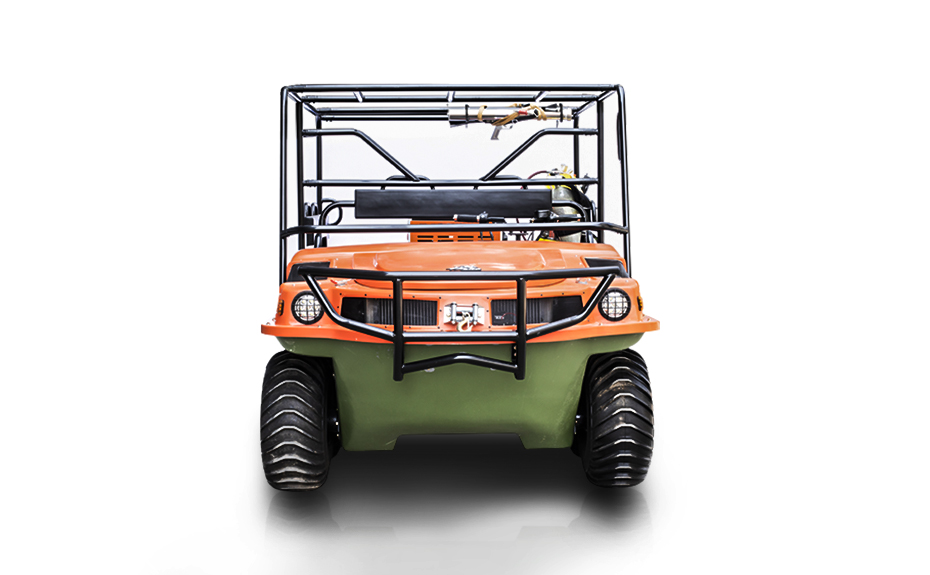

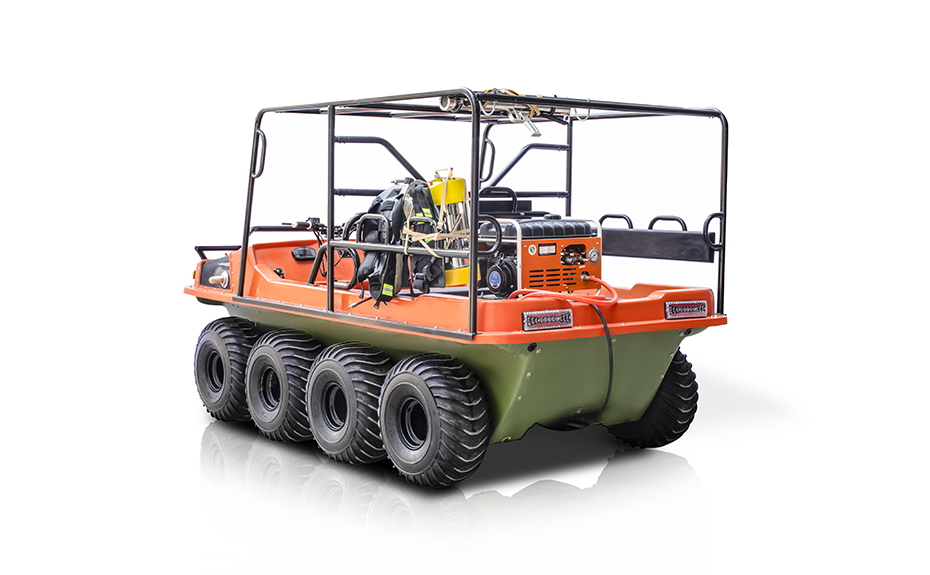

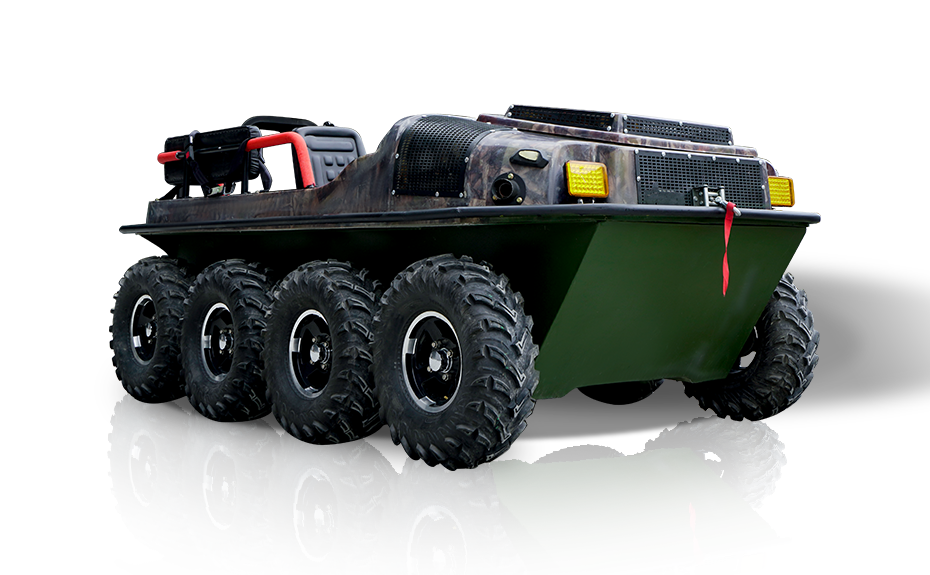

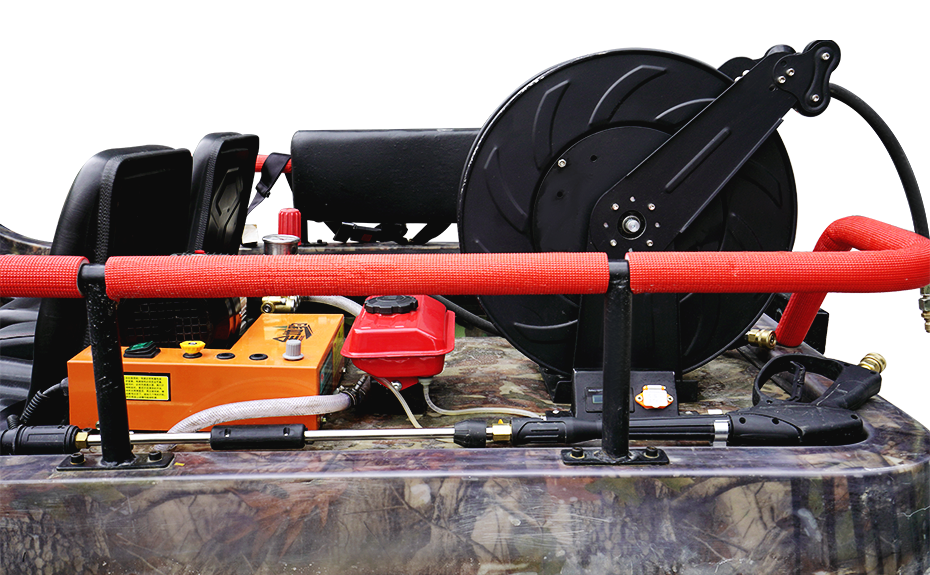

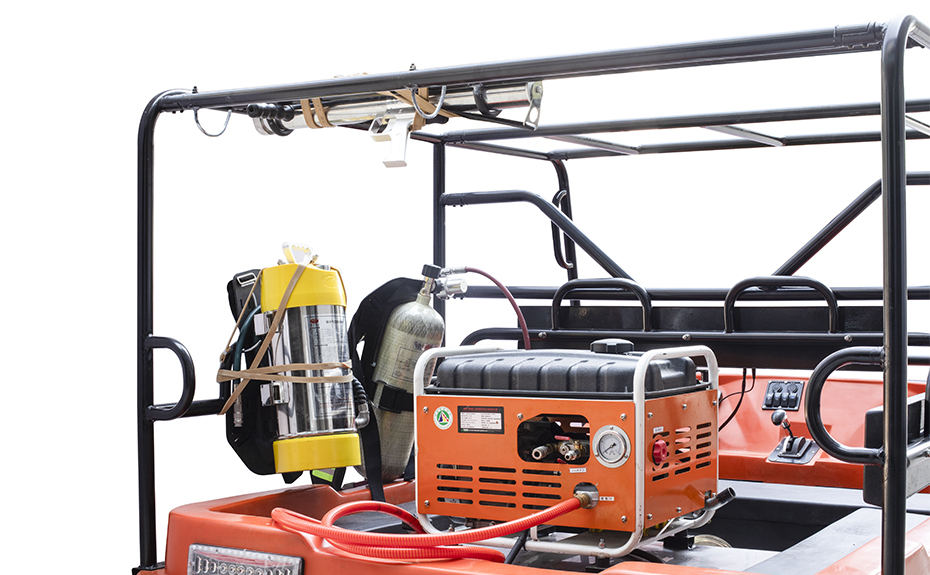

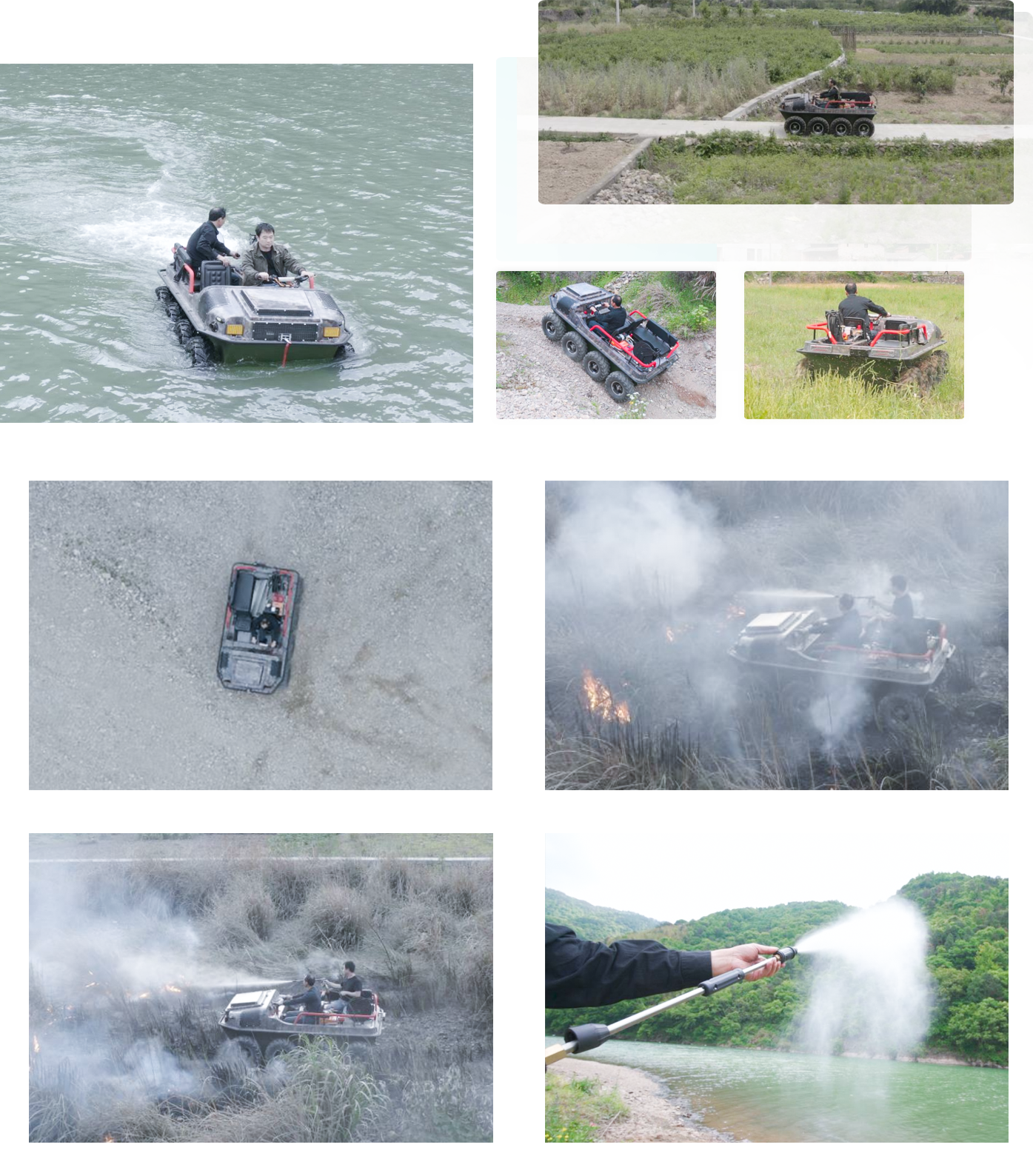

8x8 Amphibious All-Terrain Vehicle adapts 8x8 all-wheel drive, differential speed for braking and turning, continuously variable transmission, wholly sealed vehicle body and aquatic propeller-driver. It is able to climb the slope of 45°, rotate for semicirce. It can run at a high speed of 50km/h, and stat up in ultra environment with differentail temperature ±45℃ celsius degree and remain running for a long time. Additionally, it can also keep running fast over such earth's surfaces. Based on this vehicle, a new design for fire fight is came out which called 8X8 Amphibious Fire Truck.
color：
Contact now Ask a question
  • parameter
  • description
  • Body Material Glass fiber reinforced plastics ( FRP )
    Underbody material High strength aluminum alloy
    Body Parameters:
    Vehicle NO. HSD88-1
    Dimension 3100*1600*1150mm
    Wheel Base 700+700+700mm
    Final drive shaft
    Ground Clearance 270mm
    Curb Weight 750ka
    Rated Load On Land:550kg(6 People)
    On Water:400kg(4 People)
    Performance Parameters:
    Start Mode Triple safety one button electric start
    Ignition Mode IDI
    Battery Specification 12V/60Ah
    Drive Mode On Land:AII-wheel Drive
    On Water:AII-wheel Drive / Jet Pump
    Top Speed On Land: 50km/h
    On Water: 12km/h
    Minimum Turning Radius 0.71m
    Maximum Climbing Angle 45°
    Approach Angle 54°
    Departure Angle 57°
    Brake Mode Caliper Hydraulic Brake
    Tyre Specification 25xll.5-9NHS
    Tyre Pressure 5-7psi (34.5-48.3kPa)
    Transmission Mode Gearbox shaft transmission system
    Dynamic Parameters:
    Engine Mode NH3680E
    Engine Type Upright 3-Cylinder;Four-stroke;Liquid-cooled, Inline DOHC
    Displacement 800cc
    Compression Ratio 9.4:1
    Rated Power and Turning Speed 29.5kW(5000±50r/min)
    Max. Torque and Turning Speed 62.5±3.1(3000-4000r/min)
    Idling Speed 900±50r/min
    Minimum fuel consumption rate 295g/(kw.h)
    Fuel Type Gasoline of 93# and above grades for vehicles
    Lubrication mode Combination of pressure lubrication and splash lubrication
    Clutch System CVT
    Transmission Type CVT+H:L:N;P;R
    Optional Equipment:
    Windshield, rollover frame, hood, heating system, self rescue winch, camouflage air cushion, crawler pedal and safety belt, combined charging socket, trailer, etc
